BeMicro CV (Cyclone V)

The BeMicro CV Cyclone V E FPGA Development Board features an Altera 28-nm Cyclone V FPGA in the familiar BeMicro form factor.

The Altera 5CEFA2F23C8N Cyclone V FPGA resident on the Be Micro CV features a hardened memory controller (HMC) that supports DDR2, DDR3 and LPDDR2.

On the BeMicro CV the HMC is connected to a single 16-bit wide, 1Gb DDR3 SDRAM device (U1).

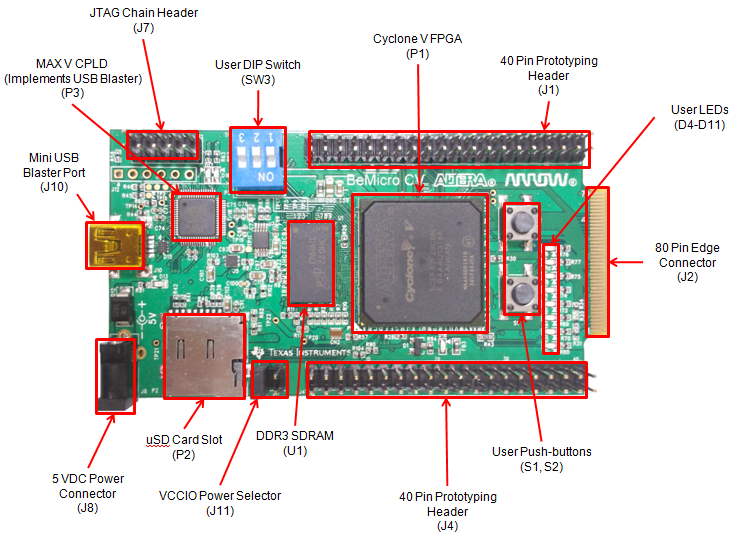

The BeMicro CV board features the following major component blocks:

One Cyclone V E FPGA (5CEFA2F23C8N) in a 484-pin FineLine BGA (FBGA):
- 25,000 LEs
- 9,434 adaptive logic modules (ALMs)
- 1,760 Kbit (Kb) M10K and 196 Kb MLAB memory
- 4 fractional phase locked loops (PLLs)
- 50 18×18-bit multipliers
- 1 Hard Memory Controller
- 224 general purpose input/output (GPIO)
- 1.1-V core voltage
FPGA configuration circuitry:
- Active Serial (AS) x1 configuration (EPCS16I8N)
- Embedded USB-BlasterTM II for use with the Quartus® II Programmer
- Separate JTAG configuration header
Clocking circuitry:
- 50 MHz 1.8V oscillator
- 24 MHz 2.5V oscillator
Memory:
- 1Gbit DDR3 SDRAM (8 Meg x 16 x 8 banks)
- 1K (128 x 8) Two-wire Serial EEPROM
- Micro SD card slot
General user input / output
8 user LEDs
2 User Pushbuttons
3 User DIP switches
Prototyping:
- 2 Terasic 40 pin prototyping headers
- BeMicro SDK 80-pin card edge connector
Power via USB or via user-provided 5V supply
